12W VARIABLE POWER FM TRANSMITTER
Continuous Reliable Power......

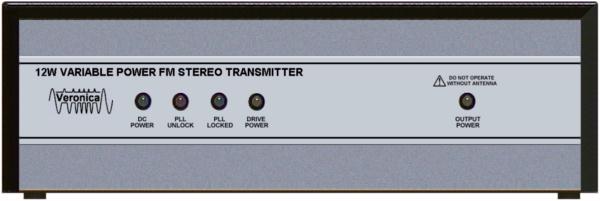

The new 12W PLL Stereo Transmitter from Veronica incorporates the crystal stereo coder (Version 3), the Easy-Tune PLL3 drive and a highly stable No-Tune variable linear power amp. This model is a lower power version of the popular Veronica 30W PLL transmitter. Ideal for licensed FM Stereo Broadcasting in the UK and most other countries of the world. A transmission range of up to 9 miles is possible when using this transmitter with an high gain antenna.
By adjusting a small pre-set control inside the unit the RF power output level can be set anywhere from 1W to 12W. Any frequency between 87.5 to 108 MHz can be accurately programmed on the internal dip switches and easily locked up to meet the Radio Authority spec in less than 5
mins. Pre-emphasis time constants of 50uS, 75uS (USA) or none are easy to select on the Internal jumpers.
Setting up is a simple task using the LED's on the front panel and
expensive test equipment is NOT required. The mains version of this transmitter operates on any AC supply from 100V to 240V
and can also operate on 13.8V DC, this makes it truly plug and play and suitable for use anywhere in the
world on virtually any power source. Alternatively a lower cost 13.8V DC
only model is available.
This transmitter along with all our other products comes with a full twelve month guarantee and our reputation of high reliability. On delivery the equipment is ready to plug in and use with any suitable 50 ohm antenna system such as our Vertical 5/8 Wave, Single Dipole or Stacked Dipole.
RF Power Output
RF Output Connector
Audio Input Sensitivity
Signal To Noise Ratio
Pilot Tone Frequency
Audio Input Connectors
User adjustable from 87.5 to 108 MHz
User adjustable from 1 to 12W into 50 Ohm load
Better than -50 dB ref to carrier
PLL Typ +/-0.5KHz
Withstands 10:1 mismatch
SO239 (or N-type on request)
0.775 V rms for +/- 75 KHz
Flat from 20 Hz to 15 KHz
19.000 KHz (Crystal Ref)
User adjustable 50uS, 75uS or None
Better than 0.2 % THD
Phono/ RCA type unbalanced sockets
100-240V AC 50/60Hz or 13.8V DC Regulated 2.5A
279 x 190 x 89 mm
